Flammable Liquid Storage Cabinet
Detailed Product Description:

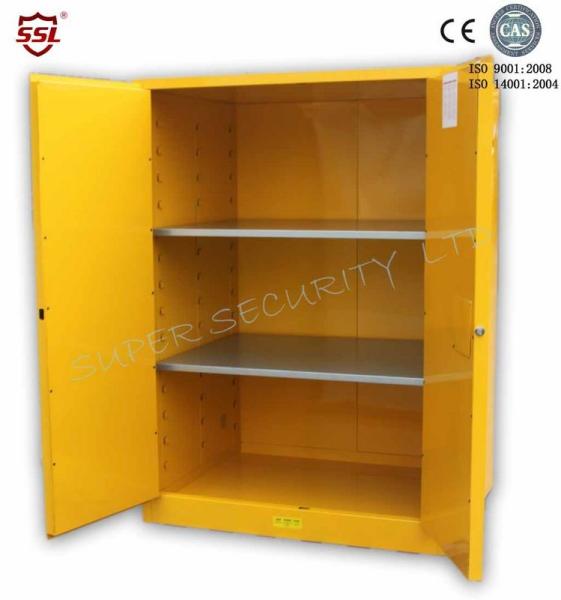

Flammable Liquid Storage Cabinets are designed for the safety storage of flammable liquid containers. These highly visible and durable yellow powder-coated cabinets features a red "Flammable - Keep Fire Away" warning on the front doors.
Specifications
Flammable Storage Cabinet
1, Manual, two Door
2, Vertical Type
3, Double wall construction
| Production Description |
- Static grounding bolt Current OSHA compliant.
- Double wall construction with 1 ½” air space.
- 3-point self-latching (Non Sparking) doors.
- Reinforced 16-gauge all-welded construction.
- Two 2” vents with flash arrestors.
| | Name | Value | | Brand | SSL | | Model | SSM100090P | | Production Capacity | 3000 Piece/Pieces per Month | | Door | Manual, two | | No. of Shelves | 2 | | Type | Vertical | | Place of Origin | China | | Int. Sizes(H*W*D) | 1470 x 1010 x 780mm/ 58 x 40 x 31 in | | Ext. Sizes (H*W*D) | 1650 x 1090 x 860mm/ 65 x 43 x 18 in | | Weight | 190Kgs/418lbs | | Warranty | Ten years | | |
Flammable safety cabinet Package
Standard Paper Box
Certificate
CE SGS
Flammable & liquid storage cabinets, 2 gallons to 90 Gallon capacity, are available based on the ultimate size of the cabinet selected. All interior and exterior surfaces, including shelves, are finished with industry standard yellow powder coating.
Special corrosion resistant powder coated finish on all interior and exterior surfaces, including shelves, offers the end users an excellent protective storage vechile for acids and and other corrosives. Powder coating gives superior protection against chemical attack in event of a spill or splash. For additional protection, each cabinet is supplied with high density polypropelene trays for the shelves and bottom of cabinet.
Not recommended for use with Sulfuric, Nitric or Hydrochloric Acid.
See the Poly Acid-Corrosive Cabinets that are suitable for use with these acids.
| Model | Door Types | Description | Overall Size H×W×D(mm) | Overall Size H×W×D(inch) | Capacity (gal/L) | Numbe of shelf(pcs) | N.W. (kg) |
| SSM100004P | Manual | Under-Bench cabinet with 1 door | 560×430×430 | 22×17×17 | 4/15 | 1 | 34 |
| SSM100012P | Manual | Under-Bench cabinet with 1 door | 890×590×460 | 35×23×18 | 12/45 | 1 | 60 |
| SSM100015P | Manual | Under-Bench cabinet with 1 door | 1120×590×460 | 44×23×18 | 15/57 | 1 | 66 |
| SSM101015P | Manual | Under-Bench cabinet with 1 door | 910×610×550 | 36×24×22 | 15/57 | 1 | 65 |
| SSM100016P | Manual | Under-Bench cabinet with 1 door | 1120×610×460 | 44×24×18 | 16/61 | 1 | 68 |
| SSM100017P | Manual | Working cover cabinet with 2 doors | 610×1090×460 | 24×43×18 | 17/64 | 1 | 70 |
| SSM100019P | Manual | Under-Bench cabinet with 1 door | 910×760×550 | 36×30×22 | 19/72 | 1 | 68 |
| SSM100020P | Manual | Under-Bench cabinet with 1 door | 1120×590×460 | 44×23×18 | 20/76 | 1 | 66 |
| SSM101020P | Manual | Under-Bench cabinet with 2 doors | 1120×1090×300 | 44×43×12 | 20/76 | 1 | 66 |
| SSM100022P | Manual | Vertical cabinet with 1 doors | 1650×590×460 | 65×23×18 | 22/83 | 2 | 90 |
| SSM101023P | Manual | Under-Bench cabinet with 1 door | 910×920×550 | 36×36×22 | 23/87 | 1 | 66 |
| SSM101030P | Manual | Working cover cabinet with 2 doors | 890×910×610 | 35×36×24 | 30/114 | 1 | 100 |
| SSM100030P | Manual | Working cover cabinet with 2 doors | 1120×1090×460 | 44×43×18 | 30/114 | 1 | 100 |
| SSM100031P | Manual | Under-Bench cabinet with 1 door | 910×1220×550 | 36×43×18 | 31/117 | 1 | 105 |
| SSM100040P | Manual | Working cover cabinet with 2 doors | 1120×1090×460 | 44×43×18 | 40/151 | 3 | 100 |
| SSM100045P | Manual | Tall cabinet with 2 doors | 1650×1090×460 | 65×43×18 | 45/170 | 2 | 138 |
| SSM100054P | Manual | Tall cabinet with 2 doors | 1650×600×870 | 65×24×34 | 54/204 | 3 | 148 |
| SSM100060P | Manual | Tall cabinet with 2 doors | 1650×860×860 | 65×34×34 | 60/227 | 2 | 165 |
| SSM100090P | Manual | Tall cabinet with 2 doors | 1650×1090×860 | 65×43×34 | 90/340 | 2 | 190 |
